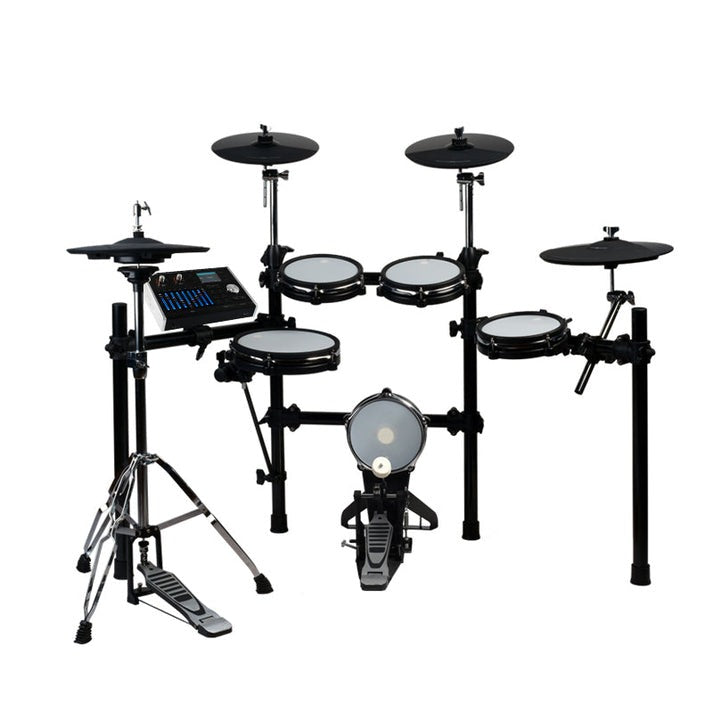

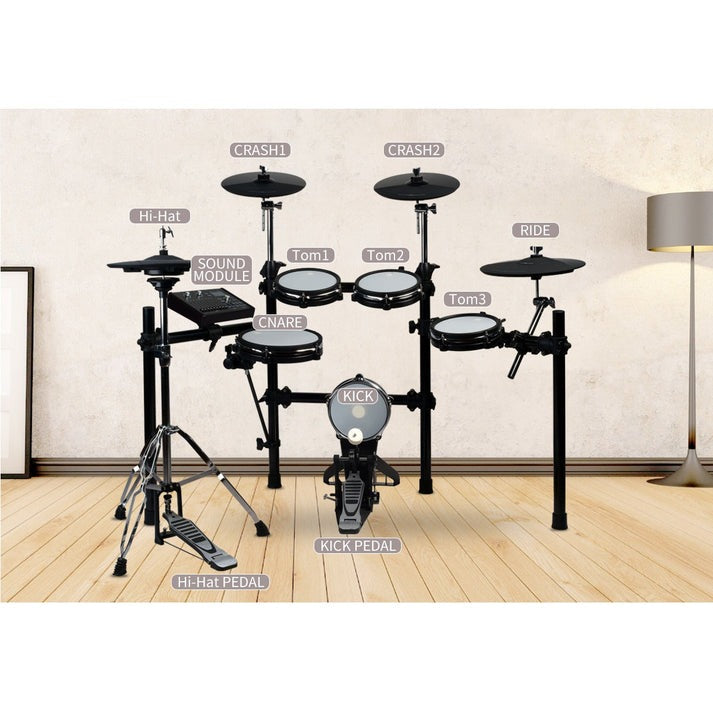

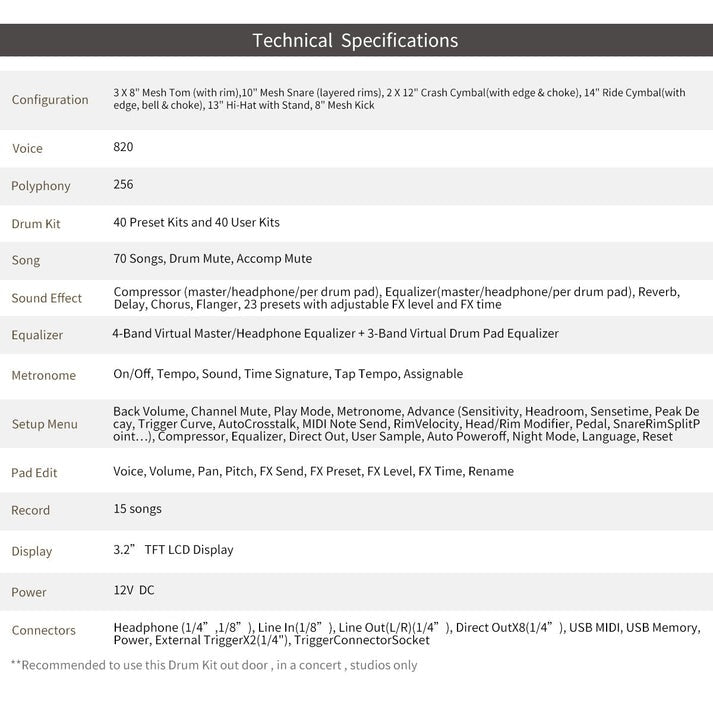

Configuration

3 x 8″ Mesh Tom (with rim)

10″ Mesh Snare (layered rims)

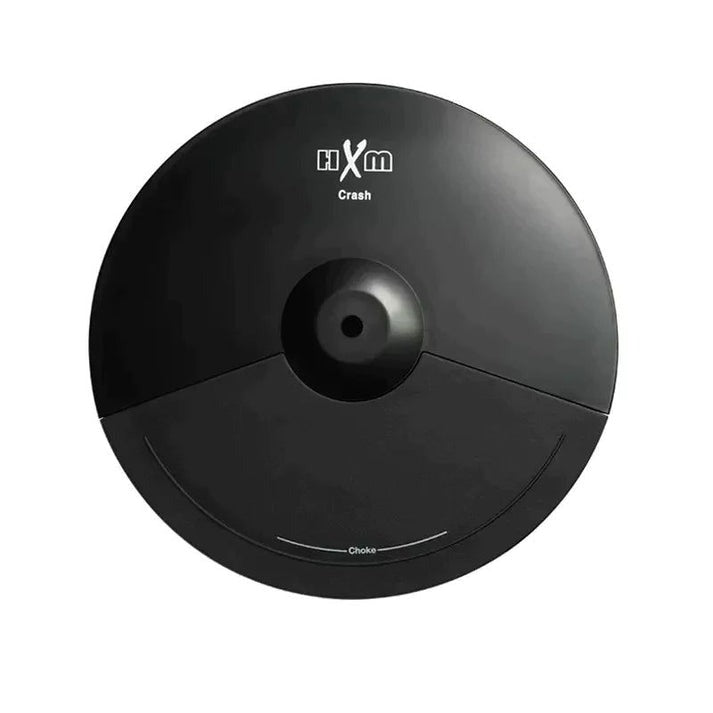

2 x 12″ Crash Cymbal (with edge & choke)

14″ Ride Cymbal (with edge, bell & choke)

13″ Hi-Hat Cymbal with Stand

8″ Mesh Kick

Sound Module

M-008

Voice

820

Polyphony

256

Drum Kit

40 Preset Kits and 20 User Kits

Song

70 Songs, Drum Mute, Accomp Mute

Sound Effect

Reverb, Compressor, Delay, Chorus, Flanger, Equalizer with Professional DSP Processor, 23 Presets with adjustable FX level and FX time

Equalizer

4-Band Virtual Master/Headphone Equalizer + 3-Band Virtual Drum Pad Equalizer

Metronome

On/Off, Tempo, Volume, Voice, Time Signature, Tap Tempo

Setup Menu

Back Volume, Play Mode, Auto Power Off, Local, Advance (Sensitivity, Headroom, Peak Decay, Sensetime, Trigger Curve, Auto Crosstalk, MIDI Note Send, Rim Velocity, Pedal, Snare Rim Split Point), Compressor, Equalizer, Reset, Compressor, Direct Out, Use Sample, Auto off, Night mode, language, reset

Pad Edit

Voice, Volume, Pan, Pitch, FX Send, 23 FX Presets with adjustable FX level and FX time, Rename

Record

15 Songs

Display

3.2″ TFT LCD

Power

12V DC

Connectors

Headphone (1/4“), Line In (1/4“), Line Out (1/4“), USB, Power, External Trigger X2 (1/4“), Trigger Connector Socket
